PROTEUS ATLAS

(No reviews yet) Write a Review

SKU:

ELATION:ATLAS:PRA501

UPC:

810008264829

MPN:

PRA501

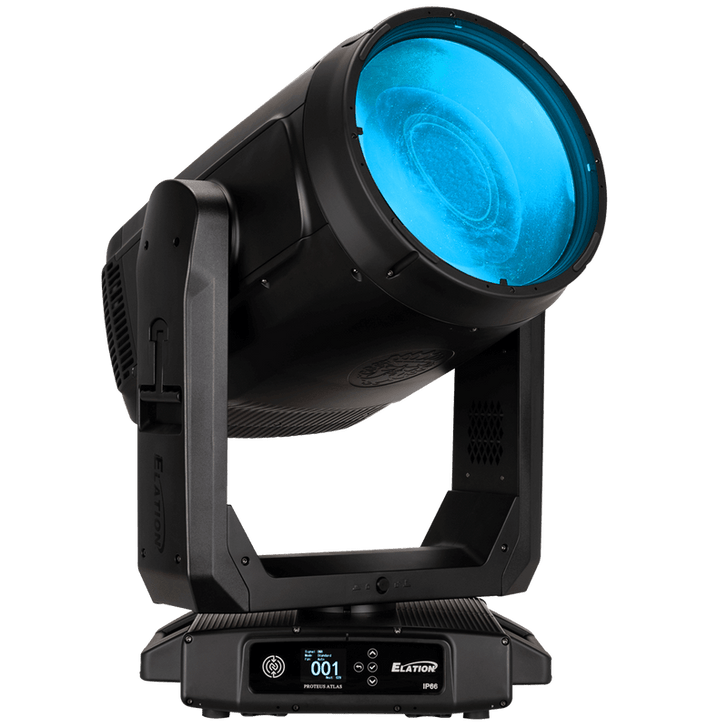

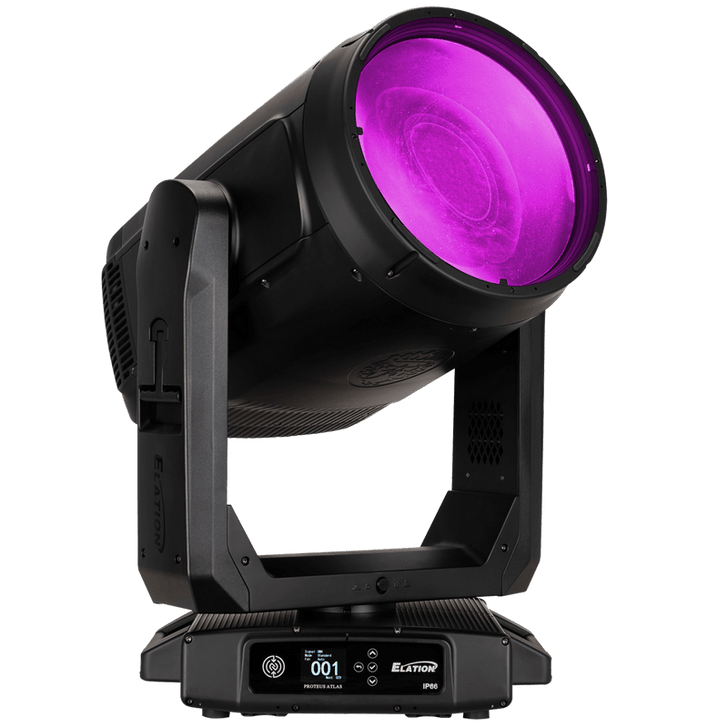

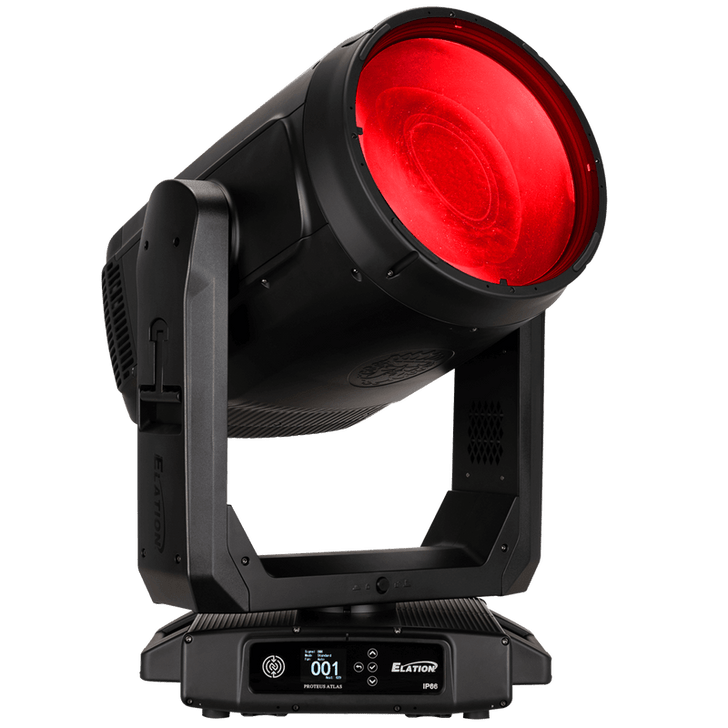

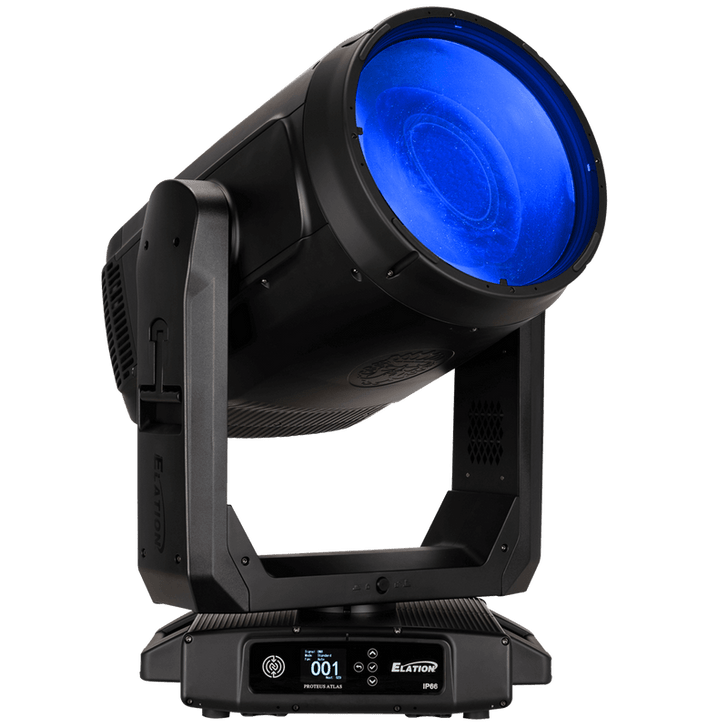

Command the heavens with Elation’s PROTEUS ATLAS, built to deliver otherworldly light for large-scale productions and permanent outdoor installations. With 1 million LUX at 20 meters, LILI technology, and a massive 320mm lens, Atlas cuts through the sky with bold, focused beams that evoke the power of traditional Xenon fixtures.

Its onboard effects system sculpts light with gobos, frosts, and prisms—shifting seamlessly from piercing beams to layered textures and soft washes. With CMY color mixing and a 25-position color wheel, Atlas offers a rich palette for bold bursts, atmospheric moods, and everything in between.

The Atlas’ precision motors provide smooth pan, tilt, and continuous rotation, while Elation’s SkyMotion system enables synchronized patterns across fixtures without a console. Built and certified with an IP-66 rating, Atlas stands strong in any weather, making it ideal for concerts, cruise ships, and permanent outdoor installs.

Designed for those who think on a larger scale, PROTEUS ATLAS delivers power, precision, and creative freedom, letting audiences look up and experience the extraordinary.

500W LILI (Laser Illuminated Lighting Instrument)
IP66 housing
Ultra Long Throw Beam FX
Continuous 360 Pan Movement
CMY Color Mixing
FX Package with rotating, fixed gobos, prisms and dual frost
Sky Motion Standalone System

Protective Foam In Lay for transport

Specifications

SOURCE

500W LILI (Laser Illuminated Lighting Instrument)

9000K, CRI 70

12,000 Hour Lamp Life

PHOTOMETRIC DATA

1.000.000 Lux @ 20m

100.000 Lux @ 100m

Beam Angle 0.6° - 8.5°

EFFECTS

Dual Frost (Hot- Spot Beam, Wash FX)

Ultra- Fast Zoom

Focus

2x3 Prisms on Dual Planes

Digital Shutter and Strobe

Pan Angle 360° / 540°

Tilt Angle 250°

COLOR

Full CMY Color Mixing System

25 Position Color Wheel

GOBOS

2 Gobo Wheels

13 Interchangeable-Rotating / Indexing Metal Gobos

26 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

2 DMX Channel Modes (30/41 Ch)

(4) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

NFC Support

Ip65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In

SIZE / WEIGHT (approx.)

Length: 14.6” (370mm)

Width: 20” (508mm)

Height: 31.5” (800mm)

Weight: 124.1 lbs. (56.3kg)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

700W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

CE | cETLus | UKCA | FCC | IP66 | FDA
