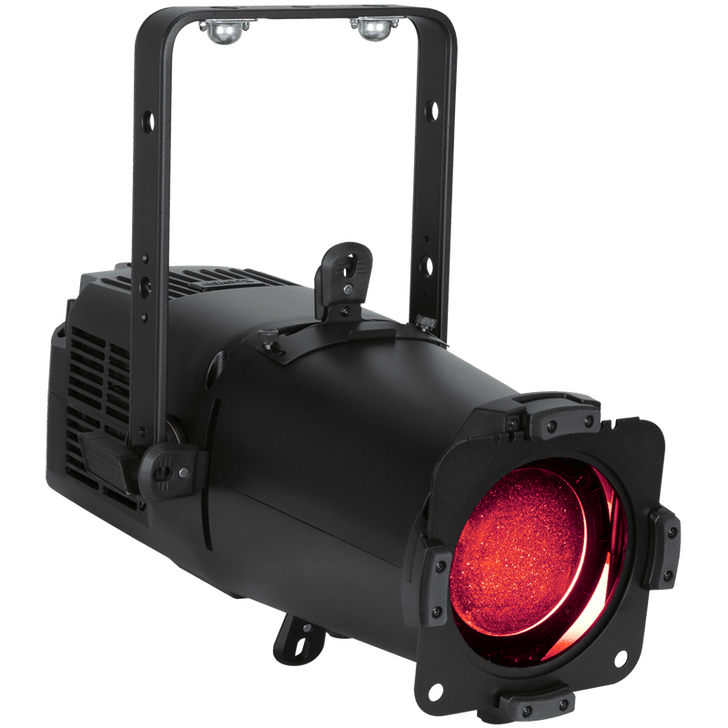

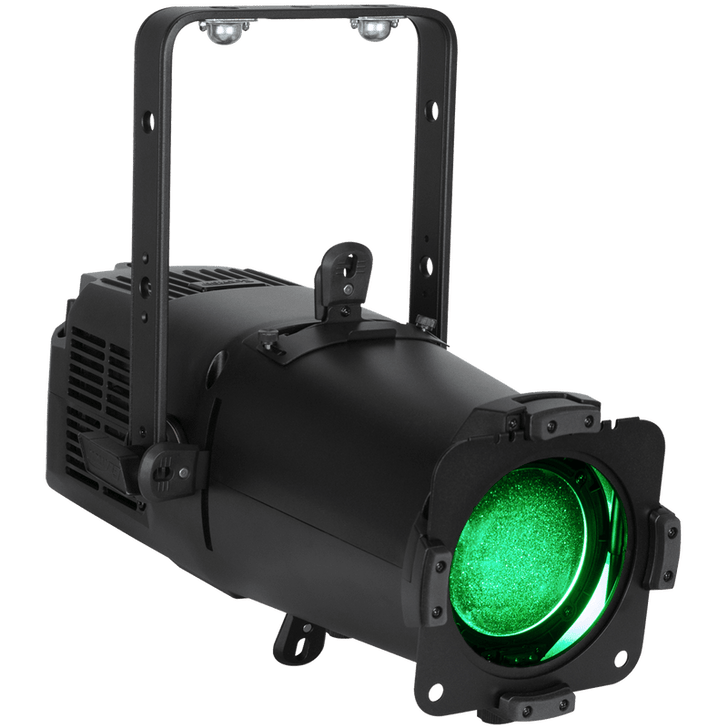

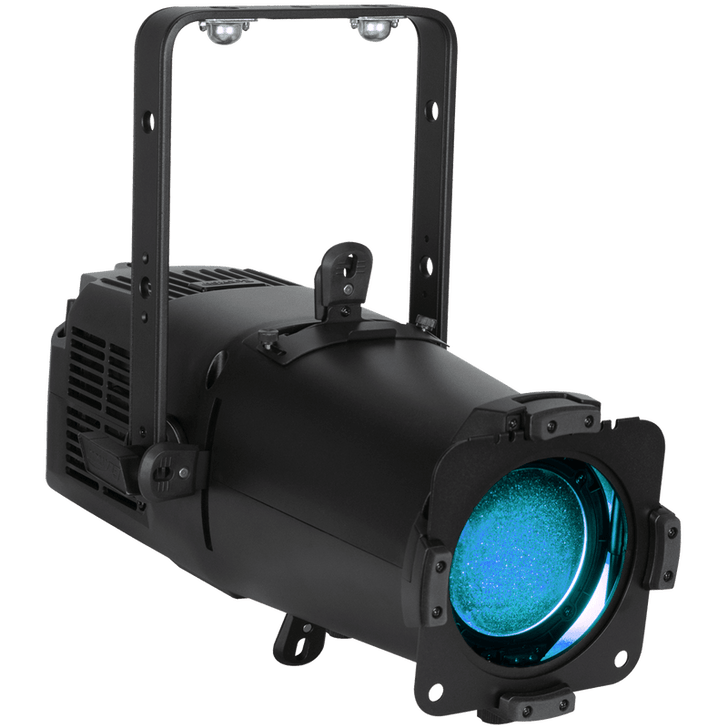

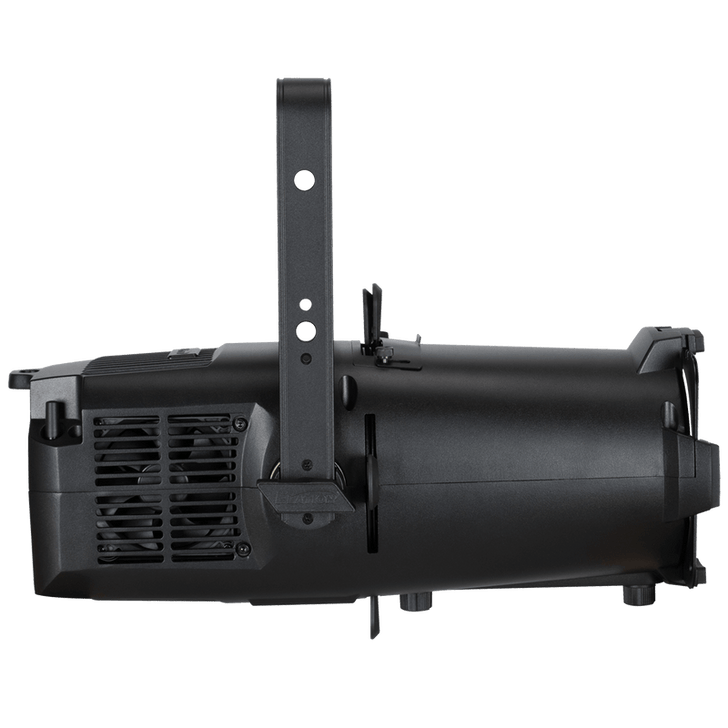

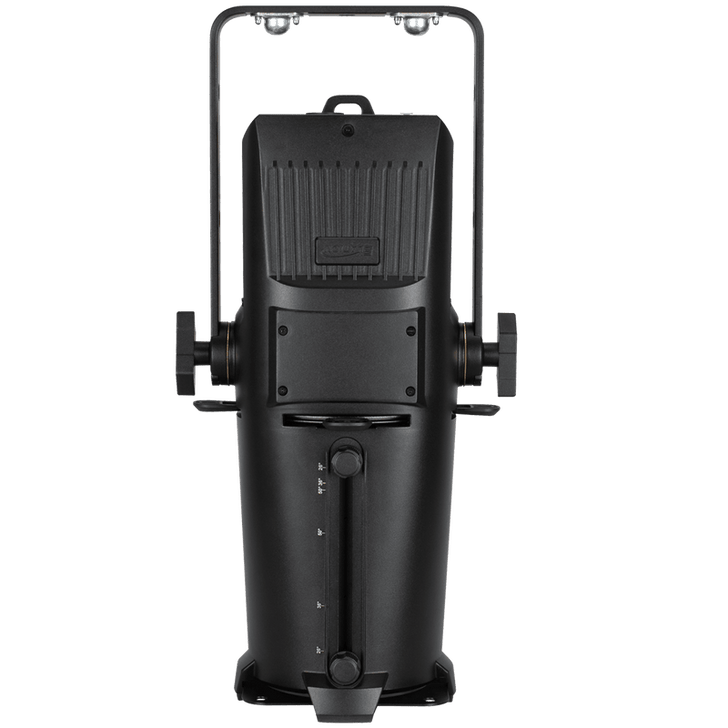

Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilizing a compact form factor that delivers exceptional results across diverse applications with vivid color and outstanding quality.
5,880 Total Fixture Lumen Output (Sphere)
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Manual Zoom Range from 25° to 50°
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management
Specifications
SOURCE
225W 6,000K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
5,880 (Integrating Sphere)
TBA (Goniometer)
CRI 94.9
TLCI 95
Zoom Range 25° - 50°
EFFECTS
Manual Zoom & Focus
4 Manual Framing Shutters
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
Accepts 1x Size 'M' Gobo (Metal Gobo Holder Included)
CONTROL / CONNECTIONS
10 DMX Channel Modes (1, 3, 5, 6, 7, 10, 11 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 18.6” (472mm)
Length (Yoke 0°): 21.1" (536mm)
Width: 10.3" (262mm)
Height (Fixture Body): 10.1" (256mm)
Height (Yoke 90°): 15.3" (394mm)
Weight: 15.4lbs (7.0kg)
6.25" Front Accessory Slot
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
290W Max Power Consumption
Power Thru Capacity: 9A (4 units @115V, 10 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 988.9
INCLUDED ITEMS
Gel Frame
Size 'M' Metal Gobo Holder
Safety Cable
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
Omega Bracket
APPROVALS / RATINGS
CE | cETLus | FCC | UKCA | IP20
