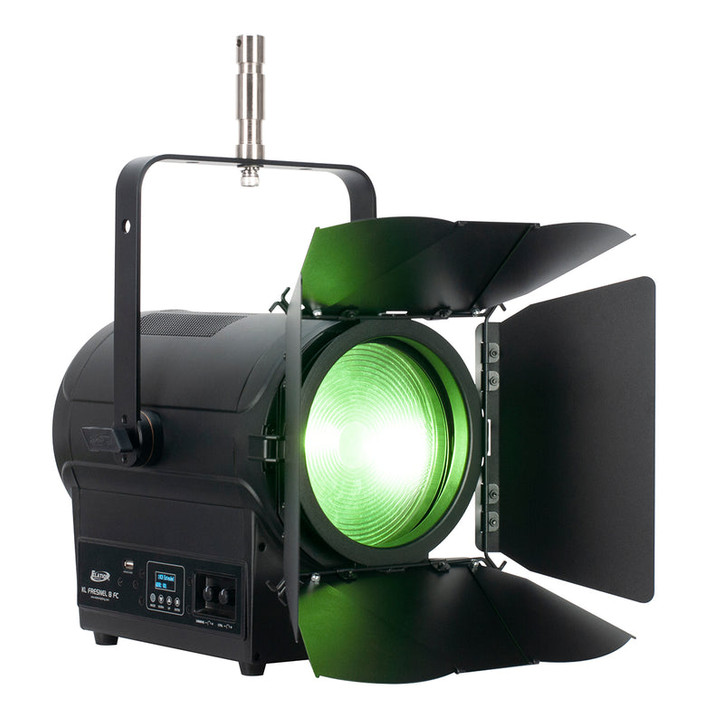

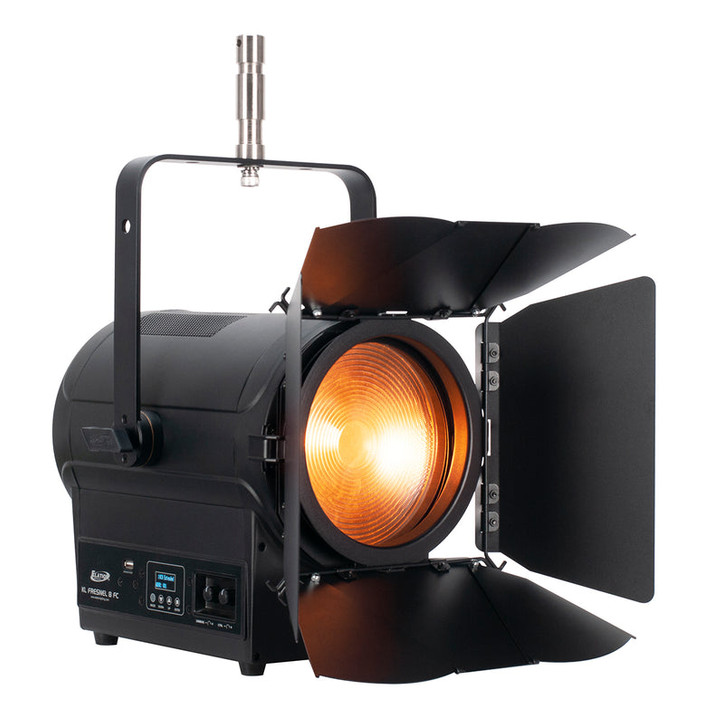

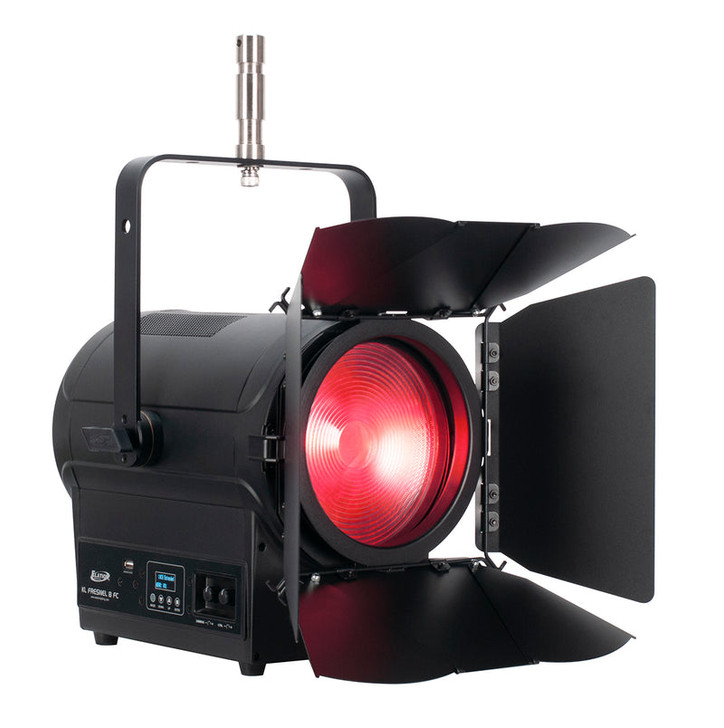

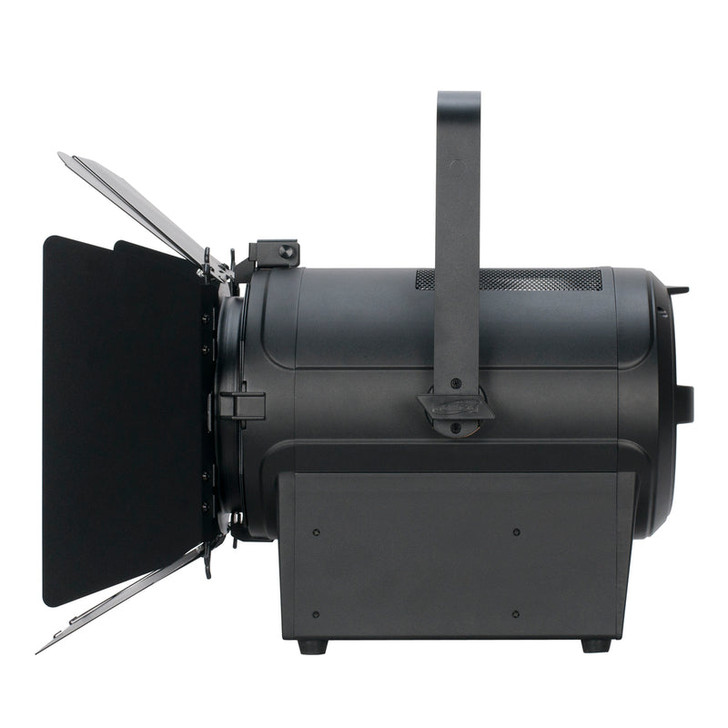

500W Full Spectrum RGBMA LED 8" Fresnel with Motorized Zoom
The KL FRESNEL 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.
Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.
The KL FRESNEL 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a motorized Zoom range of 10° to 50°.
With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 94.5 and TLCI of 94, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

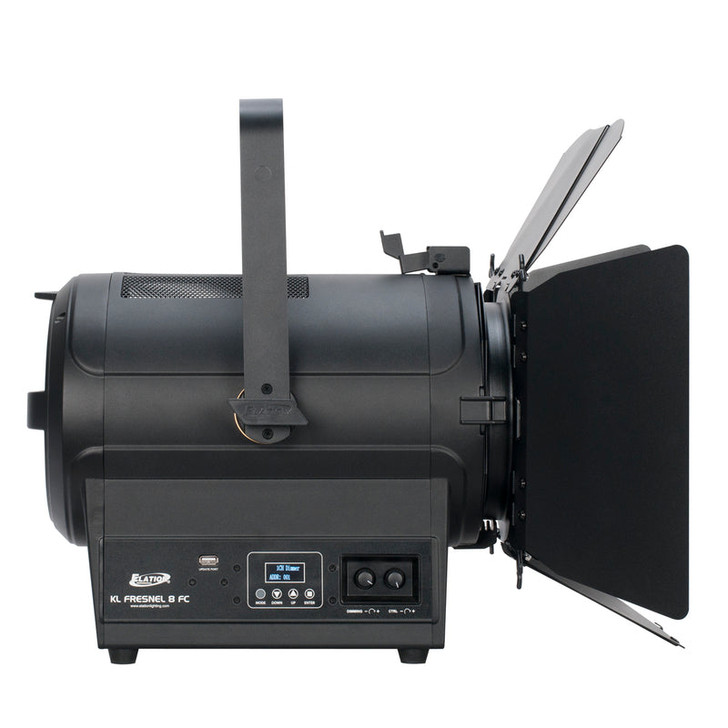

The KL FRESNEL 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.
Specifications
CRI 94.5
TLCI 94
Zoom Range 10° - 50°
Beam Angle 10.4° - 50.8°
Field Angle 20.6° - 66.1°
EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
11 DMX Channel Modes (1, 5, 7, 11, 12, 19, 20, 10, 15, 16, & 14)
Manual and DMX Controlled Dimmer, Color and Zoom
Dual Rotary Dials
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length: 15.1” (382.5mm)
Width: 12.9” (326.5mm)
Vertical Height: 17.9” (455mm)
Weight: 23.15 lbs. (10.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
514W Max Power Consumption
Power Thru Capacity: 6A (1 units @110V; 2 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1752.74
INCLUDED ITEMS
Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (1 1/8" - 28mm)
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP20
