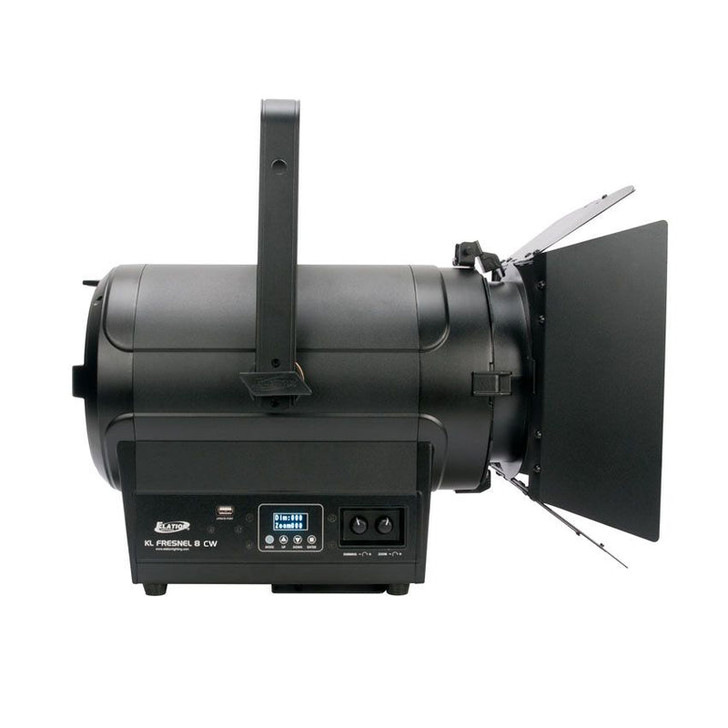

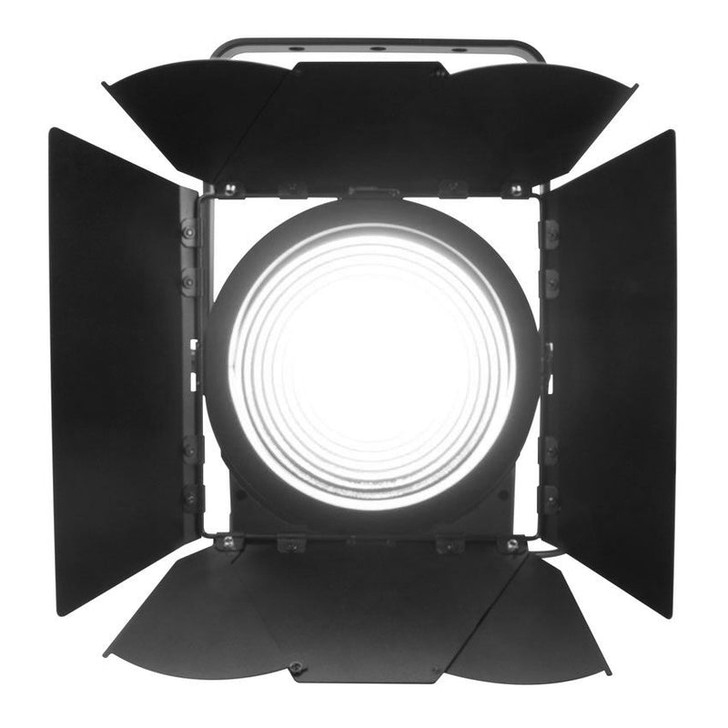

KL FRESNEL 8 CW

(No reviews yet) Write a Review
SKU:
ELATION:KL:FRESNEL:KLF036
UPC:
837874008678
MPN:
KLF036

Options

$2,354.00
Or

Info

SKU:ELATION:KL:FRESNEL:KLF036 ,UPC:

Info

SKU:
ELATION:KL:FRESNEL:KLF036
UPC:
837874008678
MPN:
KLF036

Description

350W Cool White LED 8" Fresnel with Motorized Zoom

KL FRESNEL 8 CW™ is a 350W 5,600K >97CRI Cool White LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).


  • 5,600K Cool White LED Fresnel Luminaire
  • 350W Single Source LED
  • Manual and DMX Controlled Dimming
  • Quick Single Press Light Output for Focusing
  • 11° - 56° Motorized Zoom
  • Including 8-Leaf Barn Doors and Gel Frame Holder
  • Adjustable Refresh Frequency
  • Silent Operation
  • Variable Dimming Curves, Dim Modes and Dimming Delays
  • Flicker Free Operation for Broadcast TV and Film
  • RDM (Remote Device Management)
  • Gel Frame and Rotating Barn Doors (included)
  • 3 Clamp Position Adjustable Mounting Yoke

Specifications

SOURCE
350W Cool White LED Engine, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
up to 14,000 Total Lumen Output

16,762 LUX 1,557 FC @ 9.8’ (3m) (Min. Zoom)

1462 LUX 136 FC @ 9.8’ (3m) (Max. Zoom)

Zoom Range 11° - 56°

Beam Angle 11° - 56.2°

Field Angle 17.9° - 77°

EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
5,600K Cool White LED

CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.5” (445mm)
Width: 12.89” (327.5mm)
Vertical Height: 17.95” (456mm)
Weight: 28.0 lbs. (12.7kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable


APPROVALS / RATINGS
CE | cETLus | IP20
