Description

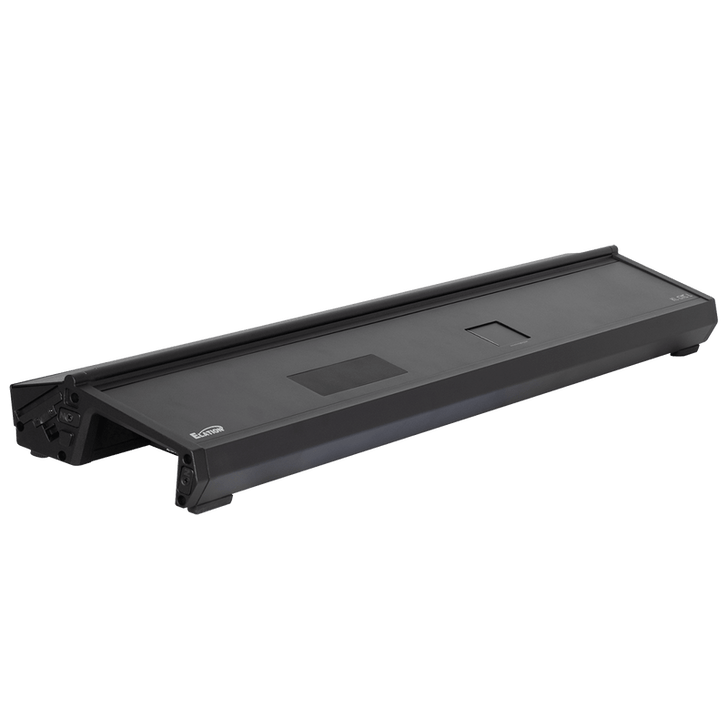

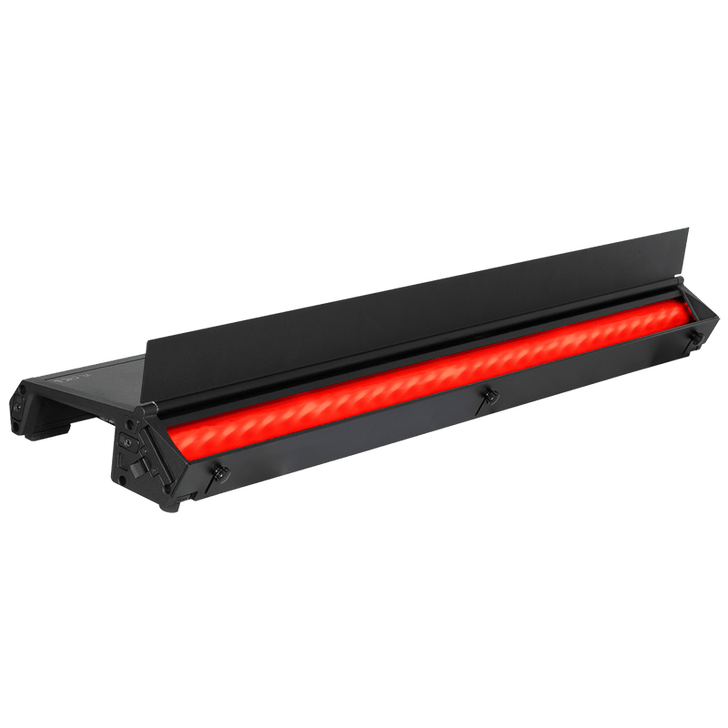

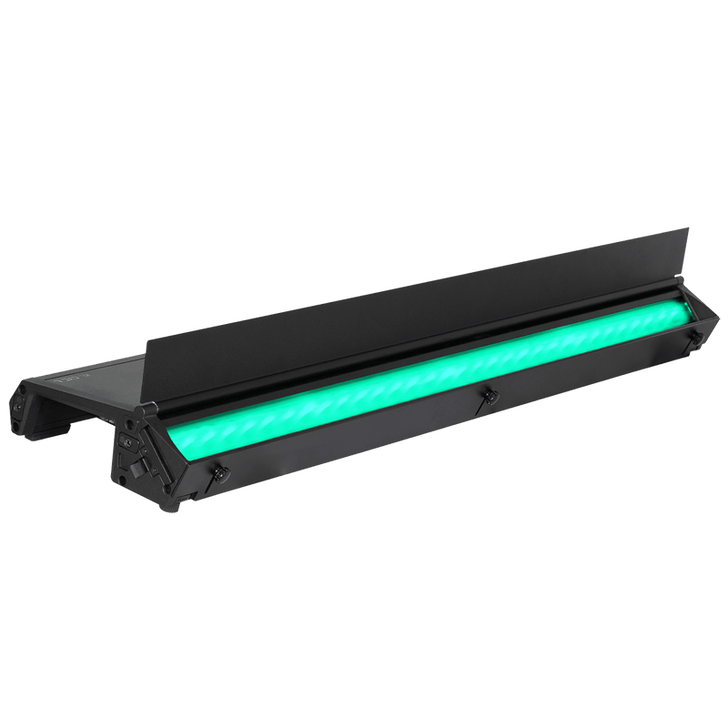

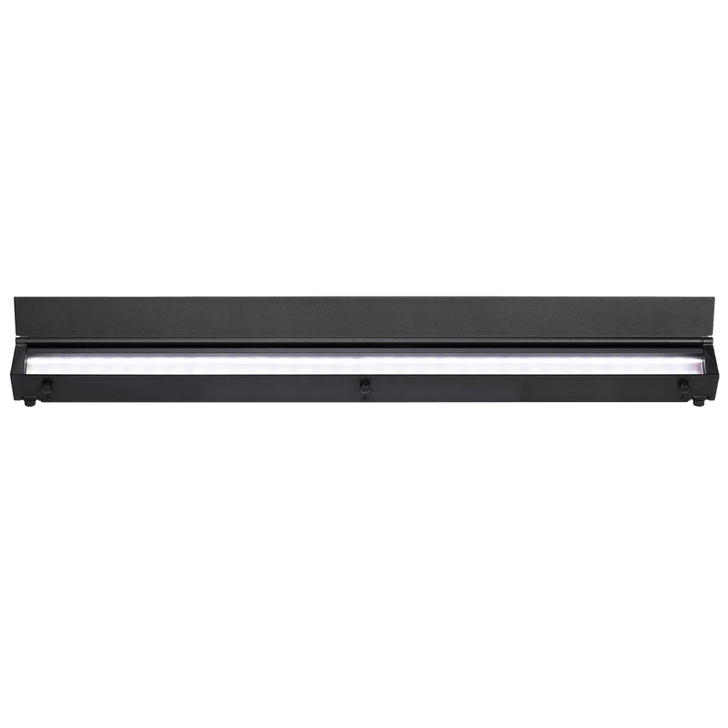

The KL CYC L is the perfect fixture for smooth and evenly illuminated cyclorama, set or wall washing application. It utilizes a carefully crafted asymmetrical reflector design to achieve perfect blends while covering significant heights with ease.

Designed with an incredibly low profile housing the KL CYC L is also the ideal choice for footlight positions, providing excellent versatility for stage, film, television and event lighting use.
Seamless magnetic alignment, simple mounting bracket attachment and elegant power and data wire management make the KL CYC a breeze to integrate into new designs or upgrade traditional CYC fixtures or foot lights to a modern LED fixture without compromises. The fanless design ensures the fixture is always a perfectly silent performer. Adjustable front feet allow for angle changes when floor mounted. The top and bottom barndoors allow for a perfect framing of the light output along the surface or to avoid overshot in footlight applications.
The KL CYC L features Elation's proven RGBMA color system, allowing a perfect color match to many other fixtures in the KL and Fuze ranges. Calibrated color temperature control, greenshift adjustment and the CMY and RGB emulation modes provide the designer with powerful control to recall any color in up to two separate segments.
The newly developed EdgeLight feature allows the user to designate a safety light in red or blue to turn on whenever desired, or if DMX signal is lost. This new feature provides a guide for performers on stage to where the edge of the stage is located.
The KL CYC L is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater or Houses of Worship.


180W RGBMA LED Array
9,249 Total Fixture Lumen Output (Sphere)
Ultra-efficient assymetrical reflector design
Replaceable Lens
Fanless heat management

Low profile housing
Up to 4 control segments
EdgeLight safety feature
Magnetic fixture alignment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
Power and Data passthrough

Specifications

SOURCE
180W RGBMA LED Array
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
Total Lumen Output

9,249 (Integrating Sphere)
8,606 (Goniometer)
CRI 96.5



TLCI 88

Filter
Beam Angle: 40° x 90°
Field Angle: 85° x 160°

No Filter
Beam Angle: 25° x 75°
Field Angle: 80° x 125°



EFFECTS

EdgeLight Safety Feature
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves




COLOR
RGBMA Color Array
Up to Four Control Segments
CMY, RGB Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 11ch, 12ch, 13ch, 16ch, 19ch, 20ch, 31ch, 32ch, 56ch)
4 Button Control Panel, LED Display
RDM (Remote Device Management)
5pin DMX In/Out
RJ45 Locking Ethernet In/Out
IP65 Locking Power Cable In/Out


SIZE / WEIGHT
Length: 37.9" (962mm)
Width: 8.1" (206.3mm)
Height: 3.4" (85.2mm)
Weight: 16lb (7.3kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
196W Max Power Consumption
Power Thru Capacity: 12A (6 units @110V; 14 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 668.36

INCLUDED ITEMS

2x Omega Bracket
1x Frost Filter
1x Barndoor
IP65 Locking Power Cable



OPTIONAL ITEMS

Power & DMX Jumper Cable (PDJ010)



APPROVALS / RATINGS
CE | cETLus | FCC | UKCA
